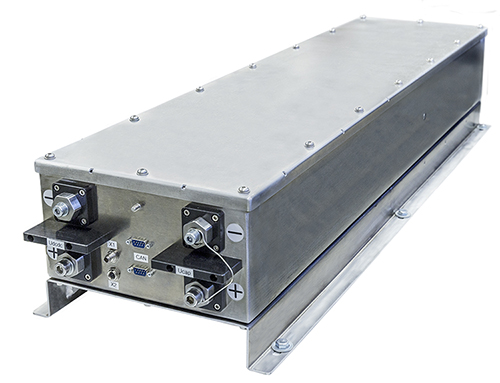

Ultracap. Mild Hybrid System
24 VDC, 125 Farad ultracapacitor module with a built-in DC-DC converter.
Reduce fuel and maintenance costs.
Benefits
- Wide temperature performance -40 °C to + 65 °C
- High efficiency – up to 95%
- Modular system
- Long life cycle -> 1.000.000
- Integrated DC-DC converter, 7kW
- Fast reaction time
- Integrated individual cell balancing
- Compact, rugged, fully enclosed and IP65 design
- Reduce fuel and emission
- Increase battery lifetime
- Long operation lifetime – 10 to 15 years
- Forced air cooling, liquid cooling optional
- CAN-BUS interface
- Maintenance free
Features
22 kg
Dimensions
1000 (l) x 320 (w) x 210 (h) mm
