RP151B
The Jennings RP151B three-phase vacuum contactor is a compact, normally open, three-phase device for use in equipment that requires a high speed interrupt. It is useful as an overload interrupter to 2000 Arms interrupting capacity. Special erosion-resistant contacts provide an operational load life of 250,000 maintenance-free operations at the rated 200 A current.
Features RP151B
- Erosion-resistant contacts provide a minimum of 250,000 operations for long, maintenance-free life
- 2000 Arms interrupting capacity – ideal for use in an overload interrupter
- Three-phase, normally open operation provides high-speed interrupt
Specifications RP151B
| 50/60/400 Hz (V) | 600 |
| Continuous (amps RMS) | 200 |
| Maximum interrupting current (A) | 2000 |
| Minimum load life | 250,000 operations |
| Interrupt | Less than 2 cycles |
| Auxiliary contacts configuration | DPDT, 115/230 VAC, 8A |
RP151B three-phase vacuum contactors
| Cat. No. | Mounting option | Voltage | Pull-in current (A) | Hold current (A) |
|---|---|---|---|---|
| RP151B4541X44R20 | 4541 | 26.5 VDC | 4.0 | 0.40 |
| RP151B4541X46R20 | 4541 | 100 VDC | 1.5 | 0.05 |
| RP151B4541X47R20 | 4541 | 115 VAC | 1.5 | 0.05 |
| RP151B4541X4XR20 | 4541 | 50 VDC | 2.1 | 0.17 |

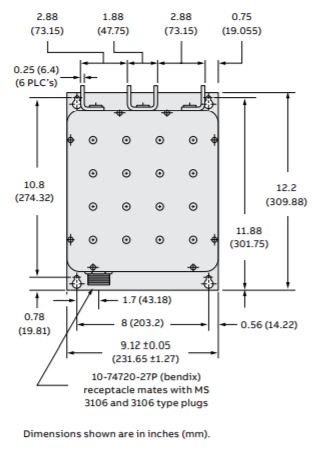

Illustrations

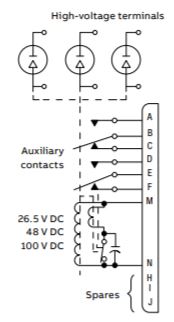

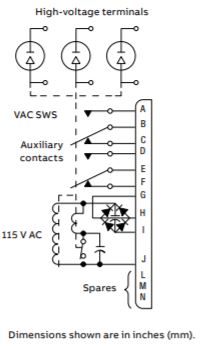

Unit shown in de-energized position
