JEV100 Series
The JEV100 Series is a product range from Jennings® DC Contactors with a current rating of 100 A.

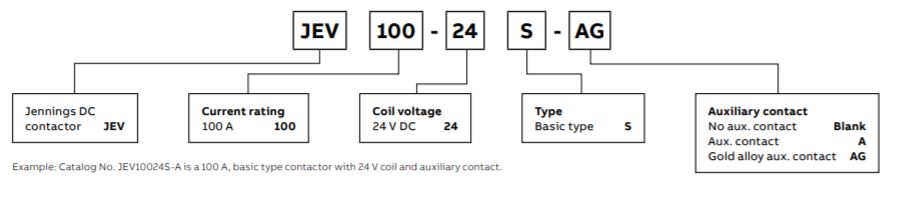

Product number configurator
JEV100 Series features
- 100 Amp current rating
- RoHS compliant
- Hermetically sealed, intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts during long periods of non-operation
- Rugged, compact contactor for switching voltages from 50 VDC to 1000+ VDC
- High-efficiency DC coils – Very low 12 and 24 VDC continuous power coils with no EMI emissions or cross-talk on your system control power
JEV100 Series specifications
| Contact arrangement | 1 Form A, SPST-NO | |
| Max. continuous current (A) | 150 | |
| Max. switching current (A) | 125 | |
| Contact rating switching voltages (VDC) | 12 - 1200 | |
| Max. switching capacity at max. voltage | 20 A at 1200 VDC | |
| General aux. contact current, max. | 2 A, 30 VDC / 3A, 125 VAC | |
| General aux. contact current, min. | 100 mA, 8 VDC | |
| Gold alloy aux. contact current, max. | 0.1 A, 30 VDC / 0.1 A, 30 VAC | |
| Gold alloy aux. contact current, min. (msec.) | 1 mA, 5 VDC / 1 mA, 5 VAC | |
| Operating time at nominal voltage (msec.) | 20 | |
| Release time at nominal voltage (msec.) | 5 | |
| Coil ratings | ||
| Nom. voltage (VDC) | 12 | 24 |
| Nominal coil current (mA) | 480 | 245 |
| Coil resistance (Ω) | 25 | 110 |
| Pick-up voltage (V) max. | 75% | 75% |
| Drop-out voltage (V) min. | 10% | 10% |
| Max. voltage (V) | 130% | 130% |
| Coil power (W) dissipation | 5.6 - 5.9 | 5.6 - 5.9 |
| Expected life | ||
| Mechanical life (min.) | 2,000,000 operations | |
| Electrical life (min.) | 10,000 at 450 VDC, 125 A | |
| 100,000 at 250 VDC, 125 A | ||
| Other | ||
| Weight | 300 g (0.66 lb.) | |
| Operating and storage temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) | |
| Relative humidity | 5-85% | |

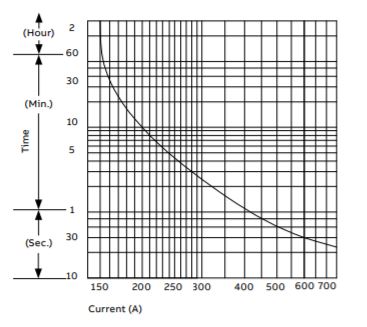

Continuous carrying 150 A
Make and break switching rating (resistive load)

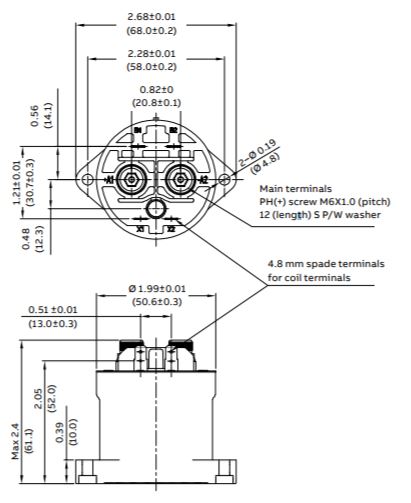

Illustrations
